Hand SanitizerFilling
Machine
ATEX-certified filling lines for alcohol-based hand sanitizer (60–80% ethanol or IPA), gel and liquid formats, retail bottle through industrial drum. Flammable-liquid-safe construction, anti-foam fill, pump-cap inserter — built for the explosive post-COVID volume demand.
Sanitizer & Disinfectant Products We Fill
From clear alcohol-based gel to thick foam sanitizer and surface-disinfectant chemistry — every hygiene format and chemistry.
Liquid Container Formats We Fill
From single-serve sachet to 200L drum — every container format on one filling platform.
Hand Sanitizer Filling Solutions
Three configurations covering retail single-bottle, multi-SKU mid-volume, and industrial bulk — all ATEX-certified for flammable alcohol handling.
ATEX Rotary Sanitizer Monoblock
Retail Sanitizer Bottle · 50ml – 500ml · Pump or Flip Cap · Alcohol-Based
Full ATEX Zone 1 certified rotary monoblock — rinse, fill, cap, pump-insert. Anti-foam dive nozzle critical for high-foam alcohol gel. Nitrogen blanketing of headspace standard (alcohol vapor displacement). Explosion-proof motors, sensors, and electrical panels throughout. Up to 200 BPM on 24-station.

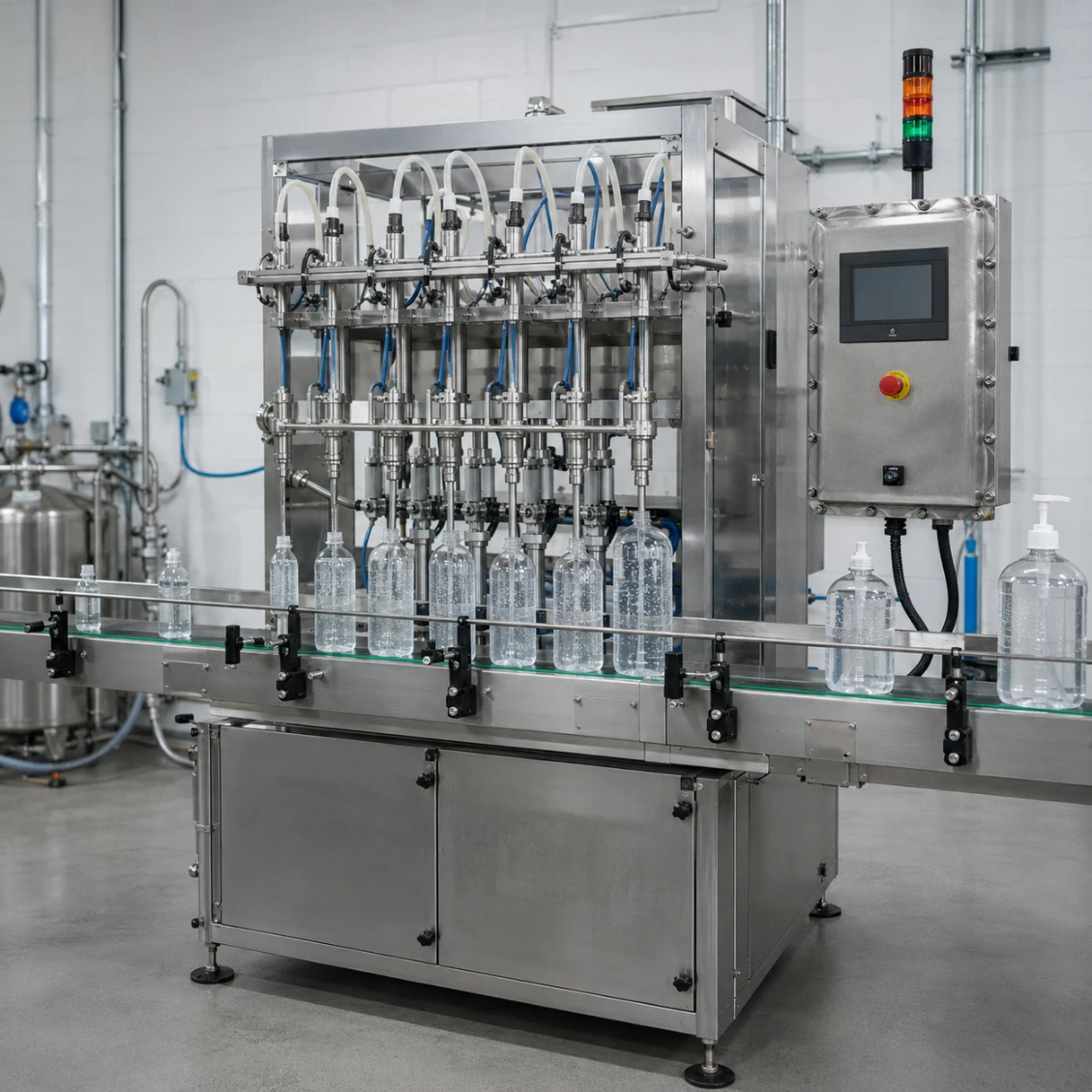

ATEX Linear Piston Filler
Multi-SKU Sanitizer · 100ml – 1L · 30–80 BPM · Travel + Retail + Bulk Mix
Linear 4 or 6-head piston filler for SMEs running multiple sanitizer SKUs (travel 50ml, retail 250ml, bulk refill 1L). ATEX Zone 1 certified. Lower capex than rotary monoblock; flexibility advantage for plants with frequent SKU changes. Capper and labeller integration available.
ATEX Drum / Canister Filler
Industrial Bulk Refill · 5L Canister · 25L Jerry · 200L Drum
For sanitizer suppliers serving hospitals, schools, offices, and contract cleaning. Net-weigh or flowmeter filling on canisters and drums. ATEX Zone 1 throughout including conveyor and weigh platform. Top-fill or under-fill option depending on container closure. Integrated with bulk pre-fill alcohol holding tank.
Complete Liquid Filling Line
From bottle de-palletize to coded, capped, labeled, shrink-wrapped pallet — fully synchronized.
Common Challenges in Hand Sanitizer Filling
Customization Capabilities
Every liquid behaves differently — viscosity, foaming, vapor pressure, particulates. We engineer to your actual product.
Built for your liquid, your container, your line speed
We don't offer one filler for all liquids. Thin water-like products want flowmeter accuracy. Foaming products need bottom-up dive nozzles. Hazardous or flammable products need explosion-proof construction. Every line is configured to your actual fluid behavior.
Send us your product sample — we'll size the machine to your exact recipe, viscosity, particle size, and target container.
Request Custom SpecWhy Sanitizer Brands Choose Qualipack
ATEX-certified flammable-liquid handling, anti-foam fill technology, and the fast-deployment capability crisis-era brands demand.
ATEX Zone 1 Certified
All motors, sensors, electrical, and conveyors certified for ethanol/IPA vapor — passes EU and US fire-marshal inspections.
Anti-Foam Dive Nozzle
Bottom-up filling with synchronized retract keeps foam contained — full bottle, full speed, no overflow.
Nitrogen-Blanketed Bulk
Sealed alcohol holding with N2 blanket maintains concentration through shift — label-claim compliance preserved.
Temperature Compensation
Volumetric fill adjusted for alcohol's thermal expansion — net content stable across ambient temperature swings.
Fast Deployment Capability
Stock-configured ATEX base machines for 8-week delivery — captures crisis-era market windows.
Pandemic-Era Experience
150+ sanitizer lines installed during and after COVID — we know the speed-to-market the market demands.
Technical Features
Engineering specs for production managers evaluating liquid filling equipment.
ATEX Zone 1 Throughout
Motors, sensors, panels, conveyor all explosion-proof
Anti-Foam Dive Nozzle
Bottom-up fill with synchronized retract
N2 Headspace Blanket
Alcohol concentration stability through shift
Servo Cut-Off Valve
Zero drip, clean bottle face for labeling
Temperature Compensation
Volumetric fill adjusted for alcohol expansion
Pump Cap Inserter
Pickplace + torque verification on sanitizer pumps
Inline Checkweigher
ATEX-rated for closed-loop fill correction
Compliance Logging
Per-batch alcohol % + fill weight for regulatory file
Sanitizer Brand Success Stories
Real results from pandemic-era launches, hospital supply, and established hygiene brand expansion.

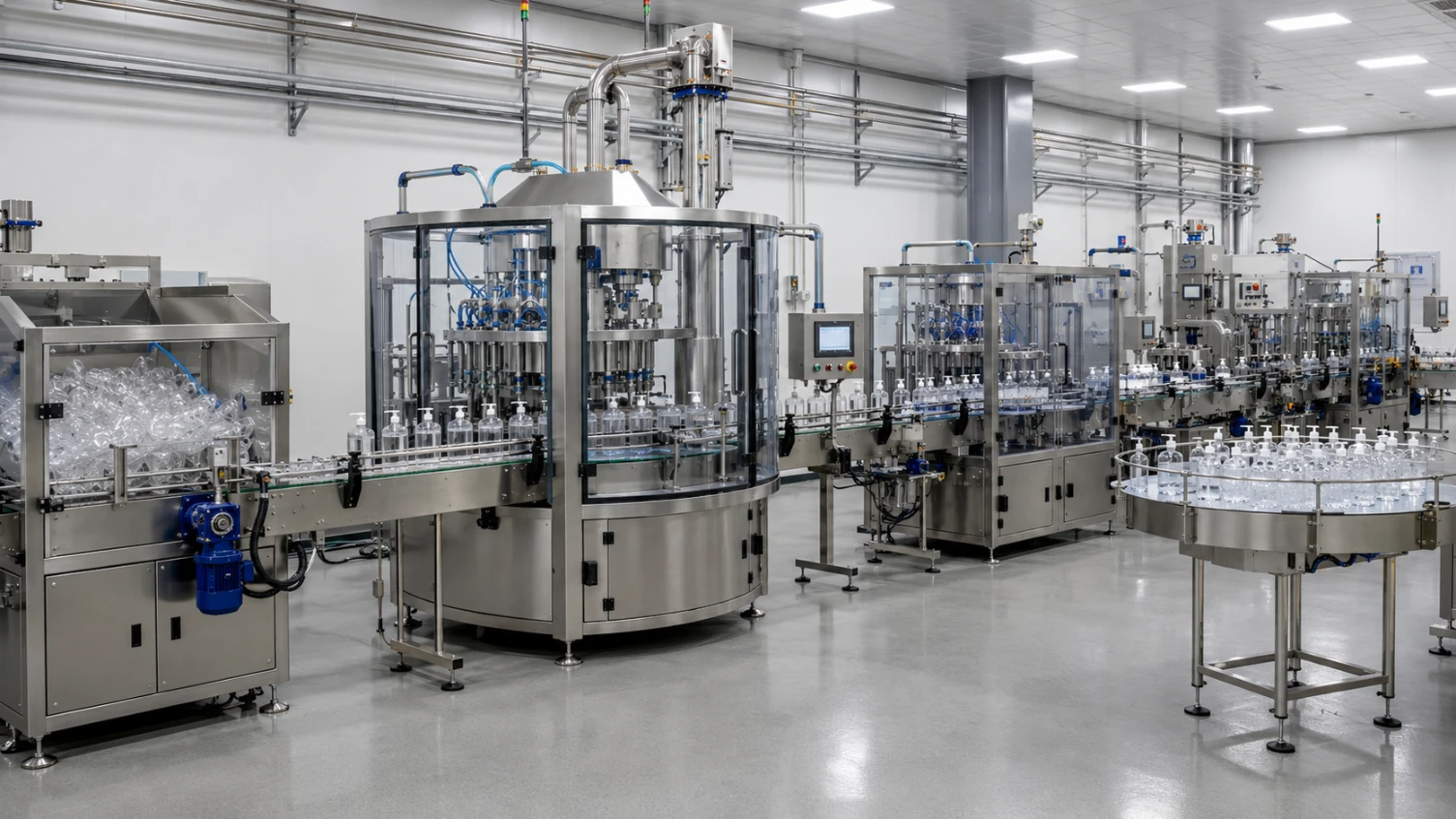

US Brand Launches in 9 Weeks with Stock ATEX Machine
A US contract distillery converted to sanitizer production during COVID needed an FDA-compliant filling line in under 90 days. A stock-configured ATEX rotary monoblock + linear small-bottle line installed and validated in 9 weeks captured the early peak — supplying 4M bottles in the first quarter of operation.

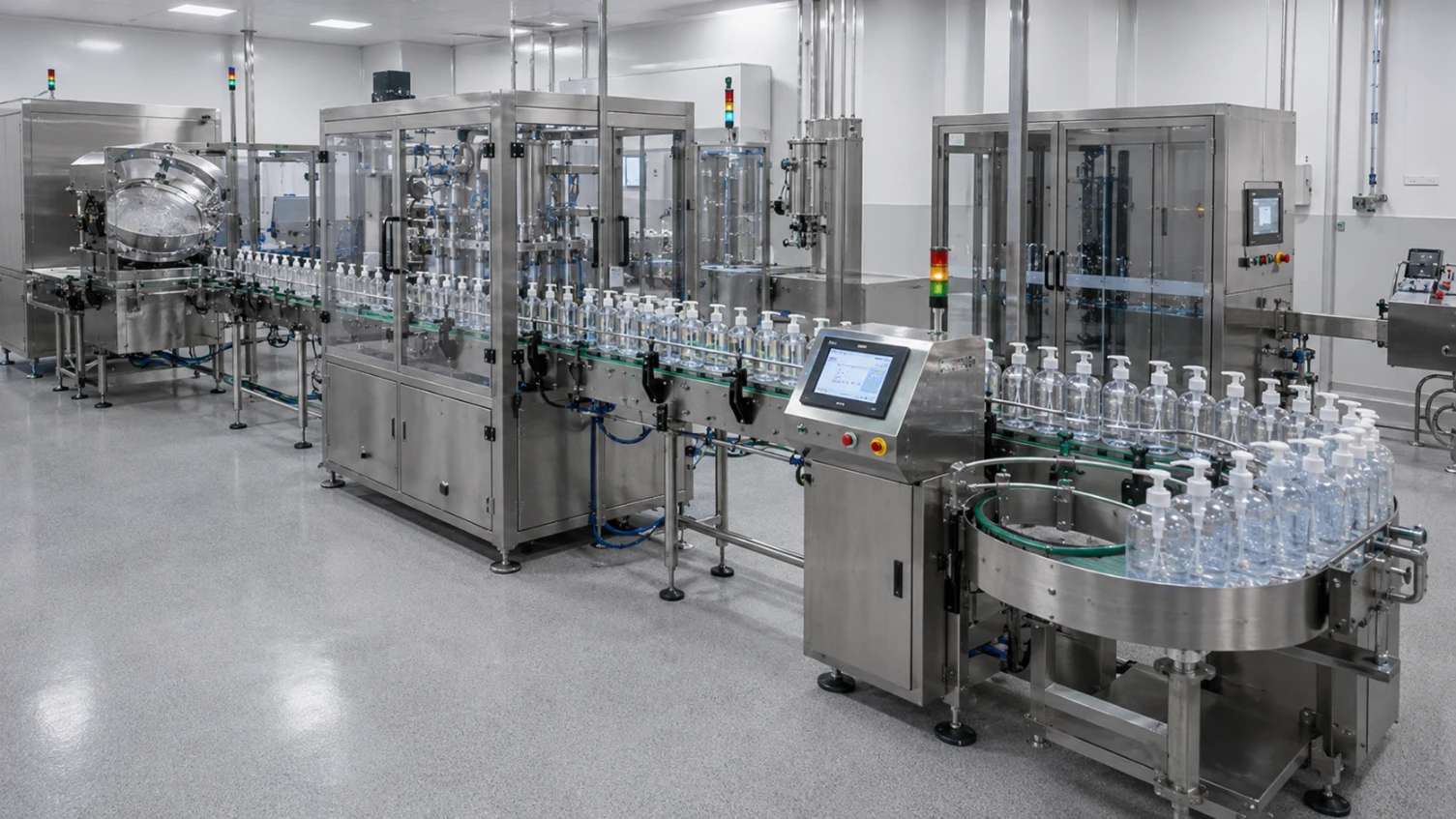

German Brand Wins Federal Hospital Tender on Net-Content Accuracy
A German sanitizer brand bidding for federal hospital supply needed verified ±0.5g accuracy on 500ml bottles per tender requirements. Temperature-compensated fill + inline checkweigher with closed-loop correction achieved ±0.3g across 4-month tender validation period — winning a €18M annual supply contract.

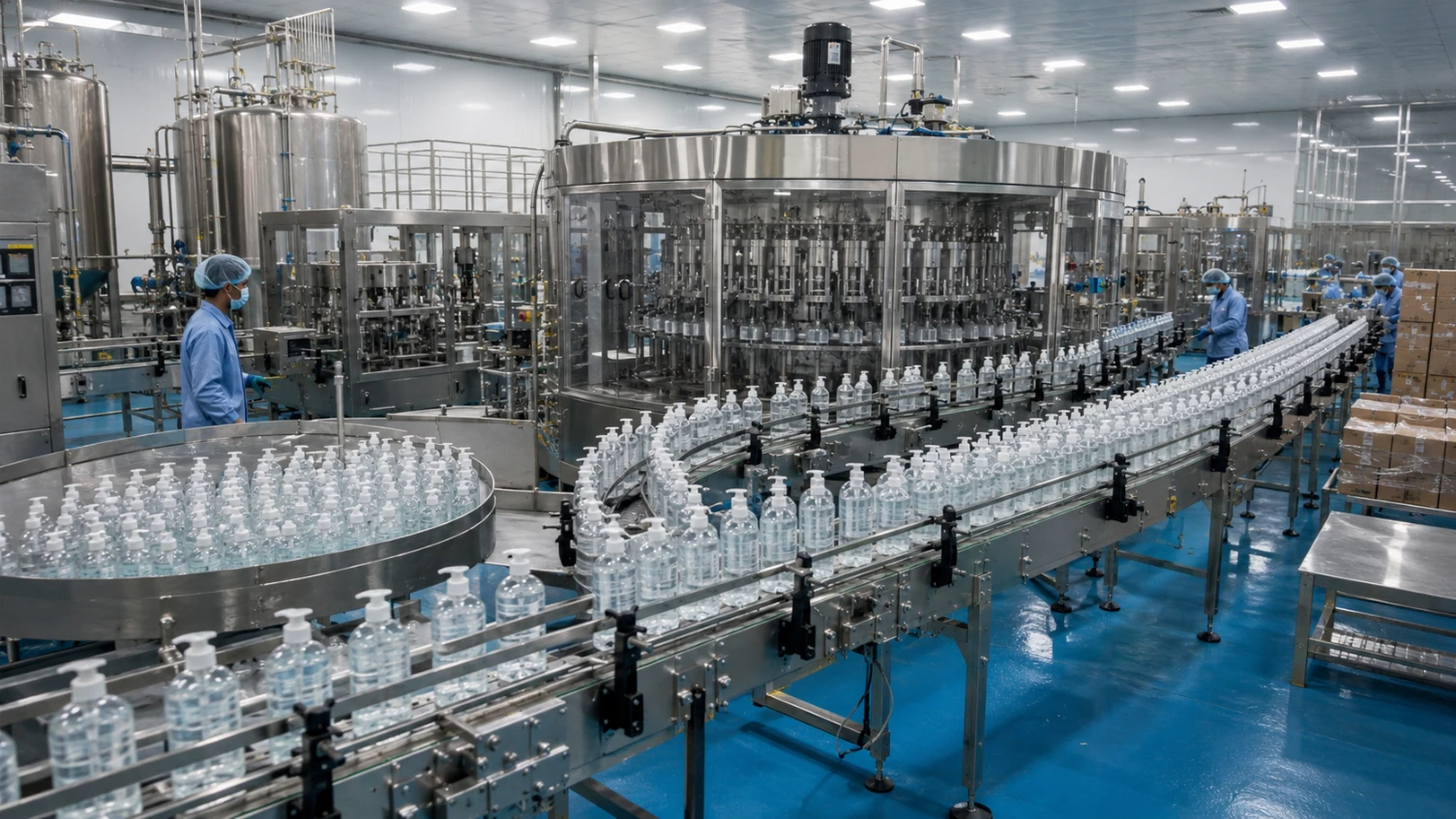

Indian Brand Scales from 50K to 500K Bottles/Day
A mid-sized Indian sanitizer brand was bottlenecked at 50,000 bottles/day on semi-automatic equipment. ATEX rotary monoblock at 200 BPM enabled 10× capacity scaling, supporting nationwide distribution across modern-trade retail chains and pharmacy chains.
Frequently Asked Questions
What buyers most often ask before purchasing.
Why does sanitizer filling require ATEX certification?
Ethanol and isopropyl alcohol have low flash points (12°C for IPA, 13°C for ethanol). At room temperature, the vapor above the liquid is flammable. Any electrical equipment in the fill zone can be an ignition source — a small spark from a non-rated motor or sensor causes ignition and potentially explosion. ATEX (EU) / IECEx (international) / FM (US) certification means all components have been tested to not produce ignition energy in the rated environment. Most fire insurance policies require ATEX for alcohol filling.
What ATEX zone classification do you certify to?
We certify to ATEX Zone 1 throughout — the rating for environments where explosive atmospheres are likely to occur in normal operation. This covers fill zone, immediate surroundings, and conveyor. Some peripheral areas can be Zone 2 (atmospheres unlikely in normal operation, occurring briefly if at all) which permits less stringent equipment. We supply complete zone map and certification documentation as part of the delivery package.
Can you handle both alcohol gel and liquid sanitizer on the same line?
Yes — gel and liquid sanitizer have different viscosity but the same chemistry hazard profile, so the same ATEX-certified machine handles both. Gel needs the dive nozzle to manage foaming and air entrainment; liquid is more forgiving. Quick-change between gel and liquid is essentially a fill-speed recipe change — under 10 minutes including a brief water rinse.
How do you prevent alcohol concentration drift through the shift?
Alcohol evaporates from the open bulk tank surface — over an 8-hour shift, concentration can drop 0.5–2% which is enough to fail FDA label-claim audit. Solution: sealed bulk tank with nitrogen blanket maintains constant headspace, no evaporation. For high-concentration products (80%+ ethanol) we also chill the bulk to 15°C to further reduce vapor pressure. Per-shift concentration sampling is built into the QA SOP we supply.
What output speed for retail sanitizer bottles?
Retail 250ml on 24-station ATEX rotary monoblock: up to 200 BPM. Retail 500ml: 150 BPM. Travel-size 50ml on dedicated line: 250 BPM. 1L refill bottle: 100 BPM. 5L industrial canister: 30–40 units/min. ATEX-rated equipment runs at the same speeds as non-rated equivalents — the certification adds cost, not slowness.
Can you supply machines on accelerated delivery during crisis demand?
Yes — we stock ATEX base machines in 2 standard configurations (rotary 18-station and linear 6-head) specifically for crisis-response delivery. Stock machines deliver in 8 weeks PO-to-commissioning vs. 16–22 weeks for custom-engineered builds. We also stock common bottle handling components (pucks, neck holders) for the most common sanitizer bottle formats — accelerating bottle-specific customization.
What labels and regulatory documentation do you supply?
Per delivery: CE conformity, ATEX certificates for all rated components, full electrical schematics, IQ/OQ protocol templates, alcohol-handling SOPs, ATEX zone classification documentation. For US deliveries we also provide UL/FM equivalents and OSHA-aligned operator safety procedures. For pharmaceutical-grade sanitizer applications we extend to 21 CFR Part 11 PLC compliance and full GMP documentation.
Do you support the pump-cap variants common on retail sanitizer?
Yes — pump-cap insertion is integrated on our retail rotary monoblock. Supports lotion-style pump dispensers, foaming pump dispensers (for foam sanitizer), and flip-cap formats. Servo pickplace + torque verification achieves 99%+ insertion success on standard pump caps. We test your specific pump on our equipment during sample trial.
