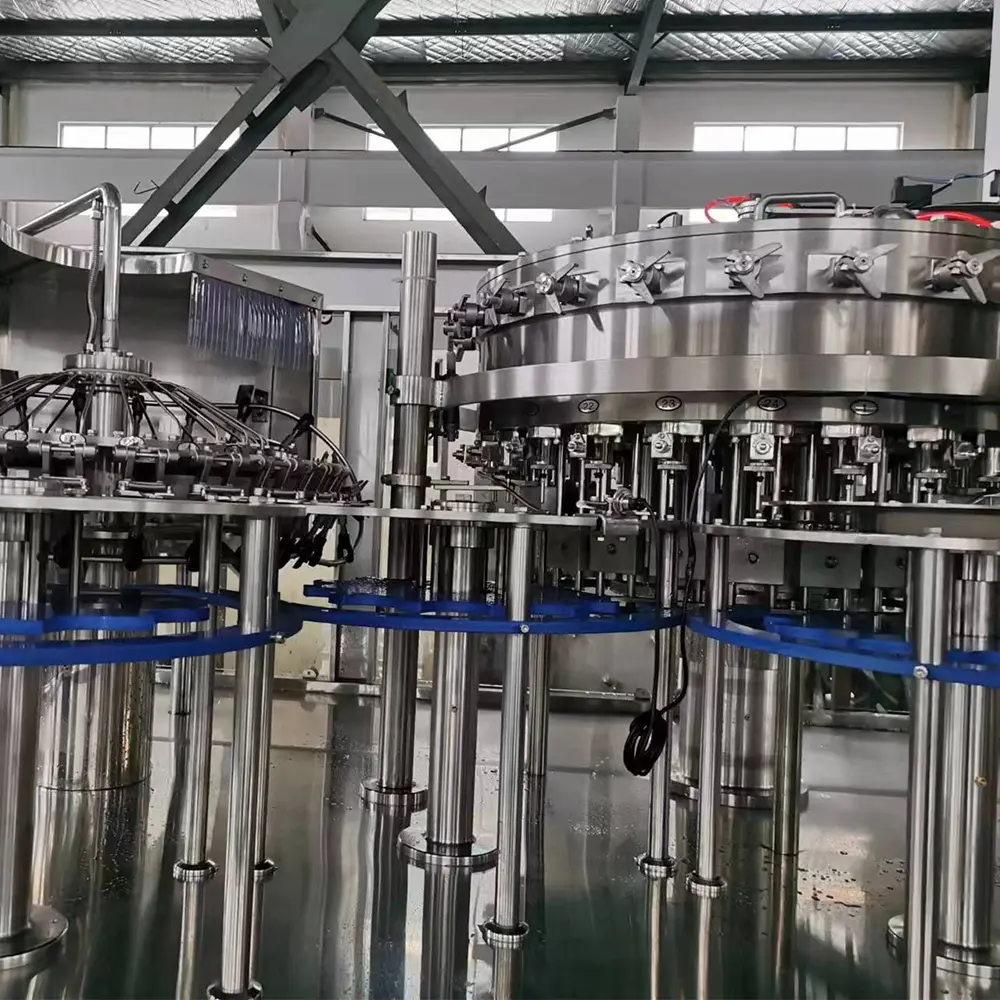

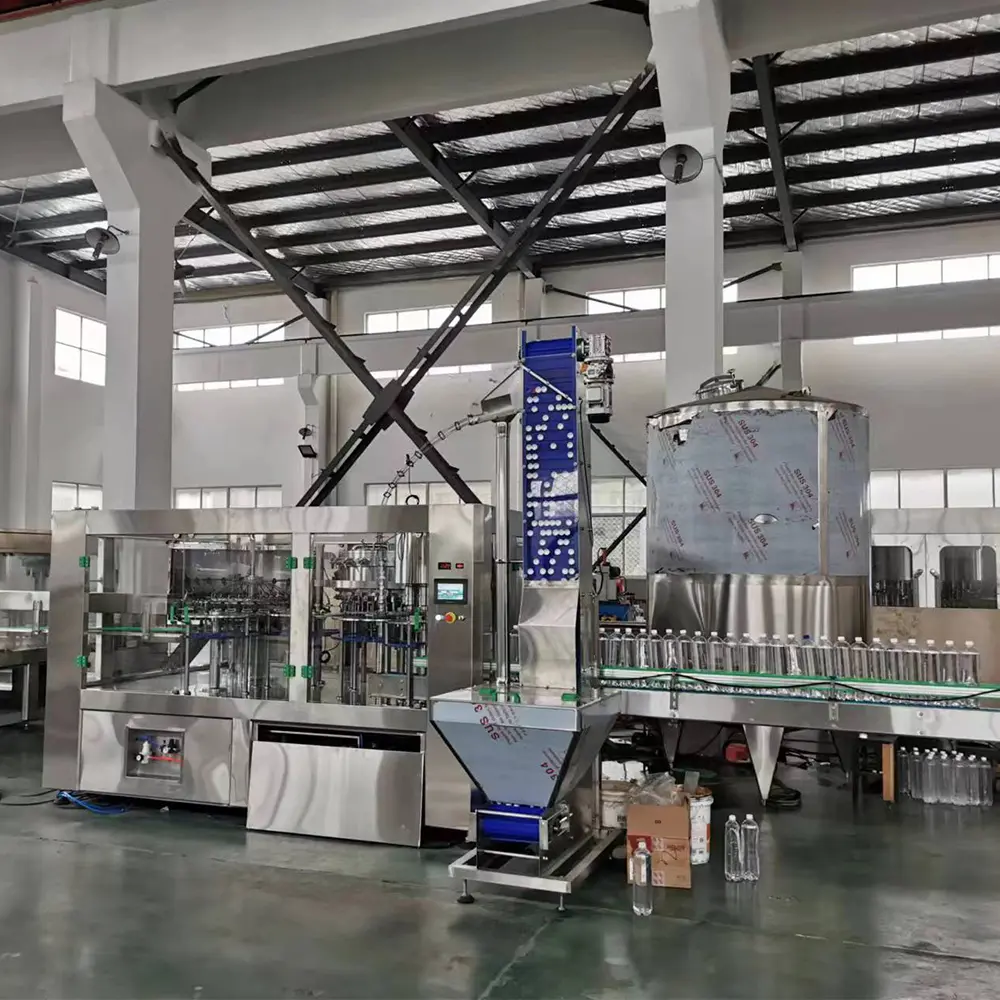

Rinser Filler Capper Machines
With a simple and compact design, it offers a free access without tools to main components, allows a fast and easy changeover and it is built up with high resistance and long durability components. All this helps to reduce downtimes and drives to an OEE over 95%.
- The price is based on CFR KARACHI
- Delivery time: 15 working days
- Payment terms: 100% irrevocable LC at sight
- Packing: Bubble film and export wooden case
- Size of Machine(mm):2400×1500×2300mm
- Guarantee: 12 months for the whole machine. During the warranty period, should any problems/defaults happen, free parts will be sent out in 2 working days (stock spared) and
- Working days(customized spares) by DHL, TNT or FedEx
The functions of Rinser Filler Capper Machines

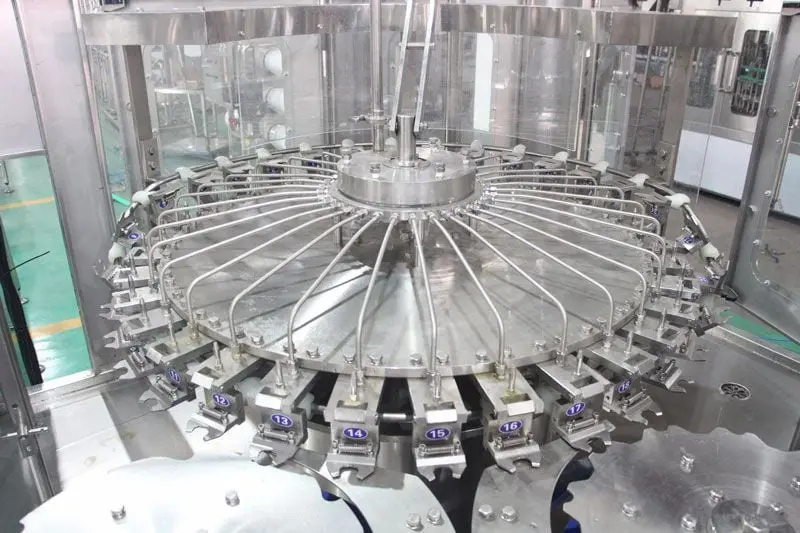

Washing heads
1.Using a unique design, avoid the traditional bottle on rubber clip to block the bottle threaded parts may be caused by the
pollution.
2.Washing pump is made of stainless steel.
3. By high spray nozzle, a blunt bottle of water jet angles, flush to the bottle of any part of the inner wall, rinse with water thoroughly and save the flush bottle.
4. Bottle clamp and flip agencies sliding sleeve adopts Germany igus corrosion-resistant bearing without maintenance.

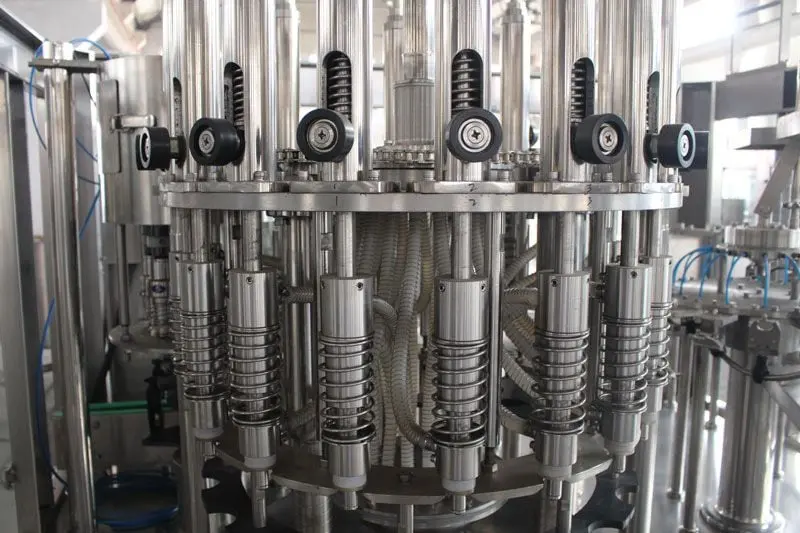

Filling heads
1.Filling method for gravity filling.
2.Filling valve manufactured SUS 304/316L.
3.High precision, high-speed liquid filling.
4.Filling move by the rack drive system through gear transmission.
5.Hydraulic cylinder controlled by a float liquid level.
6.Using the latest double guide pillar type bottle of the lifting mechanism, avoid the bottle of elevating the old products must be through the mesa caused by leakage on the edge, at the same time, easy installation and maintenance.

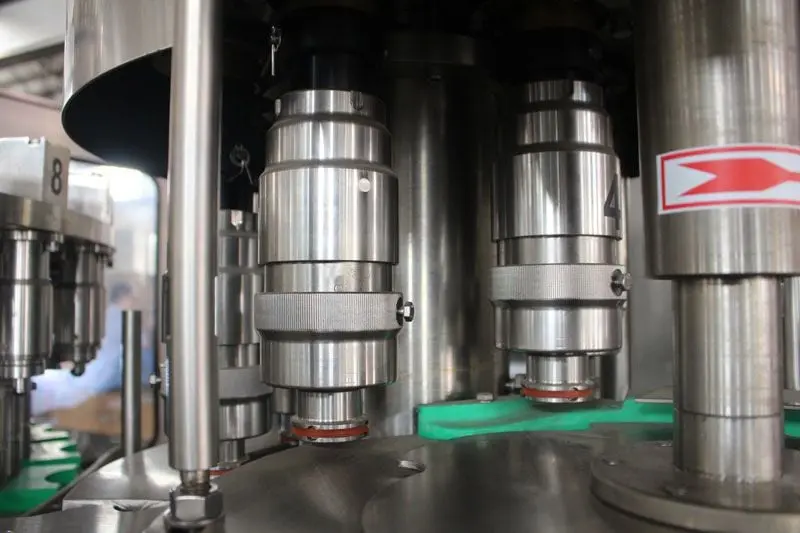

Capping heads
1.Automatic check, no bottle no capping.
2.Capping heads in stainless steel 304/316L.
3.Capping heads stop working when lack of bottle.
4.Fall guy guide sets out to prevent the cover through and cover on the body, at the same time equipped with a set of photoelectric switch, automatic stop when lighted cover rail without a cover machine, can effectively avoid the occurrence of an open bottle.
5.High efficiency centrifugal principle.
This auto bottle liquid filling machine is designed for various glass vials or antibiotics bottles, suitable for the filling of various liquids or low-viscous liquids, like cosmetic or pharmaceutic oil, injection liquids etc; powder or granules filling can be customized accordingly based on needs.
Integrated with mechanical, electrical& pneumatic system, with PLC & touch screen to control, it can auto finish bottle turntable feeding, liquid filling, stoppering & cap-crimping & bottle exiting, thus enhancing working efficiency and saving working tense & area to large extent.
Product Details
- Smart touch screen, humanized design, easy to operate.
- High-speed filling valve to avoid dripping and leakage and the filling volume are accurate.

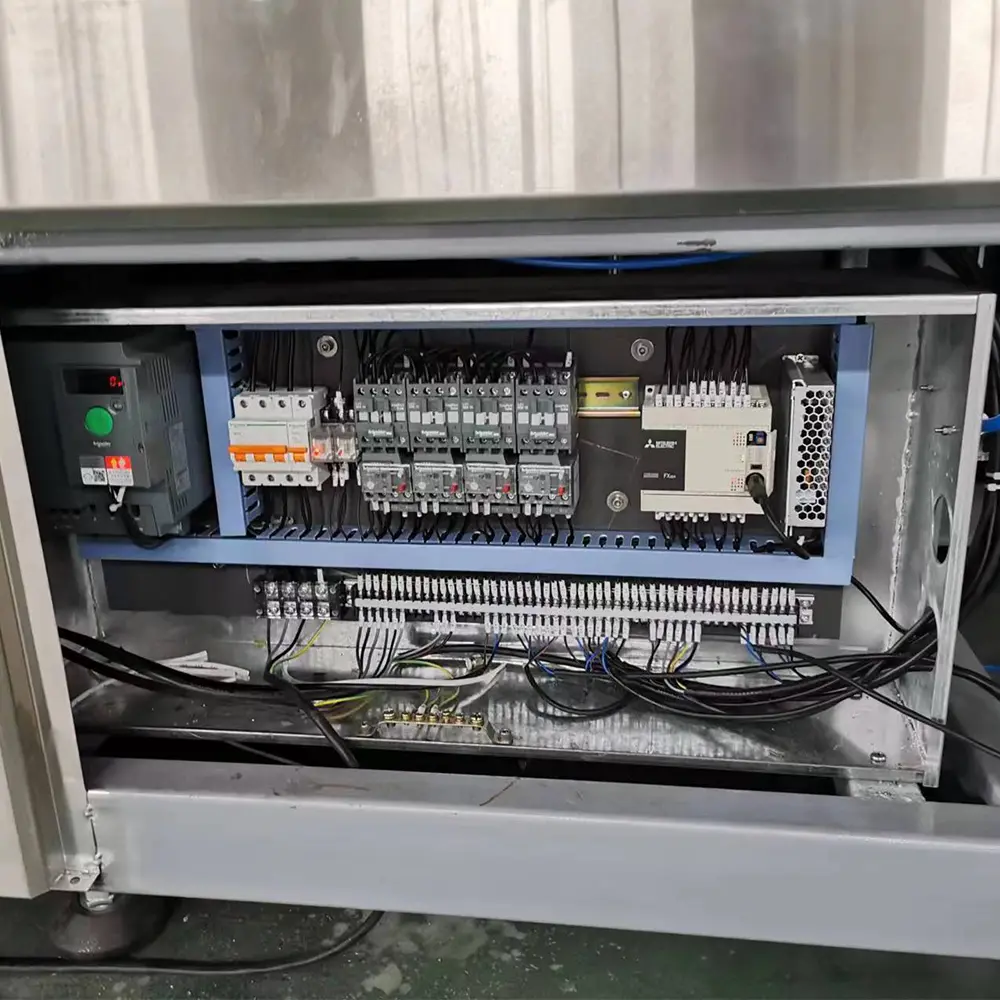

- Program Logic Controller (Plc), easy to change the size, or modify parameters.
- Pneumatic components are all well-known brands, stable and reliable.
- Photoelectric sensor and pneumatic link control can automatically protect bottle shortage.
- Pneumatic execution control valve, high efficiency, and safety.
- Tight positioning design, easy to manipulate, suitable for packaging bottles of various sizes.
- The machine is designed according to the buyer’s requirements
Bottle Style
Typical Bottle Sytles Can Bring In This Model
Lid est laborum dolo rumes fugats untras. Etharums ser quidem rerum facilis dolores nemis omnis fugats vitaes nemo minima rerums
- 24+ Years of Industrial Experience
- Customized Machinery Design
- Overall Packaging Solution Provider
- Supplies all kinds of packaging machinery
- More than 50 strategic cooperation machinery factories
- Free sample testing
- Up to 15 days of fast delivery
Component Breakdown
| Model | CGF8-8-3, 12-12-6, 18-18-6, 24-24-8, 32-32-8,40-40-10, 50-50-12, 60-60-15 |
| Application | Springwater / mineral water / pure water / non-gas wine drink and so on |
| Production capacity(500ml) | 1000-25000BPH |
| Filling precision | ≤±5mm(liquid level) |
| User Ambient Conditions | Temperature:10~40℃; Humidity: No dew |
| Suitable bottle specification | Volume=100-2500ml Diameter φ=50-110 Bottle height H=150 ~350mm |
| Machine material | Food stage SS304 OR SS316 |
| Air source pressure (Mpa) | 0.5-0.6 |
| Motor power(kW) | Main motor 5.12kw |
| Control System | SIMENS PLC+ TOUCH SCREEN |
| Power Supply | Voltage:220V~4150V,3phase; Frequency:50HZ/60HZ or your requirement |
| Overall dimensions (mm) | 2900*2100*2400 |
| Weight (kg) | 4500 |
| Certificates | CE / SGS / ISO 9001/ CCC |
